Identification Gate.
Automatic identification gates with verification, custom developed for your process — the foundation for AI-RTL&RS.

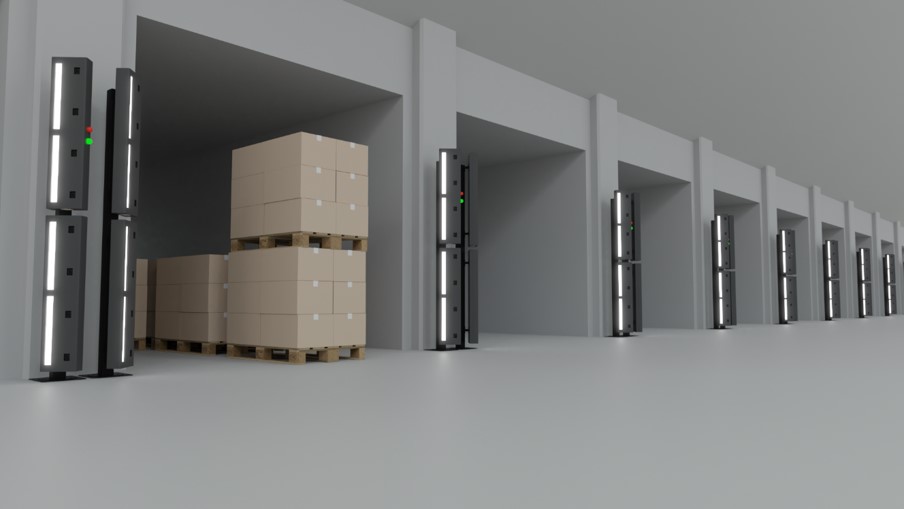

Barcode Identification Gates.
Identify all goods coming through a gate automatically — no manual scanning required.
- Read 1D and 2D barcodes while passing by
- Read text or labels
- Consistency check — verifies whether a code has been recognized for each package
- Height coverage adjustable thanks to modular design
- Audio and visual alarms
- Combination with AI-RTL&RS
Are you looking for a solution to identify all goods coming through a gate? The W2MO barcode identification gate offers a convenient and efficient way to automate the process, eliminating the need for manual scanning. The gate is designed and developed based on the specifications of your processes.
W2MO barcode identification gates are capable of reading any kind of 1D or 2D code or text. In addition to reading the codes, a consistency check is performed during the reading process. A green light is only shown if all packages have a code and all codes have been read and processed. The modular design allows the gate to be adjusted to suit your operational needs. The construction can be adapted to distance and height requirements, and it can even include alarm modules for audio and visual alerts.
When used in combination with the AI-RTL&RS, the gate is able to perform at its full potential. As the single identification point at the inbound, it serves as the foundation for successful scan-less goods tracking.
Label Verification.
Check the results of the identification gate in real time with the help of AI.
- Verify that each barcode was read
- Verify that each package/container has a code
- Verify code content against the WMS
- Audio and visual alarms
The results of the barcode identification gate can be easily checked in real time with the help of AI. During the reading process, containers are detected and counted, and W2MO verifies that each container is labeled and that all labels are read correctly. In case of an error, the system displays a visual or audio alarm.
After basic verification is completed, the results are processed in W2MO. By connecting to your WMS or SAP system via a database connector, RESTful API or SAP connector, the results can be verified directly against the data in your systems.

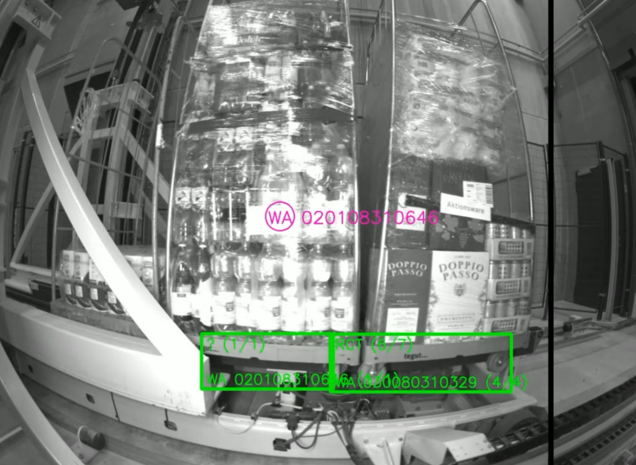

Conveyor Gates.
Mounted on a conveyor system to handle additional tasks beyond reading barcodes.
- Read 1D and 2D barcodes or text while passing by
- Consistency check — verifies whether a code has been recognized for each package
- Detect load carrier type
- Measure dimensions and check contours

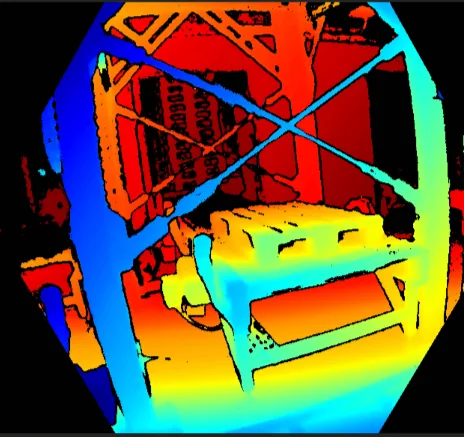

The W2MO identification gate can be placed onto a conveyor system to perform additional tasks beyond reading barcodes and verifying that all labels have been read. It can detect which load carrier is used based on a list of possible carriers. Even stacks of empty pallets can be detected, even if they do not carry any labels at all.

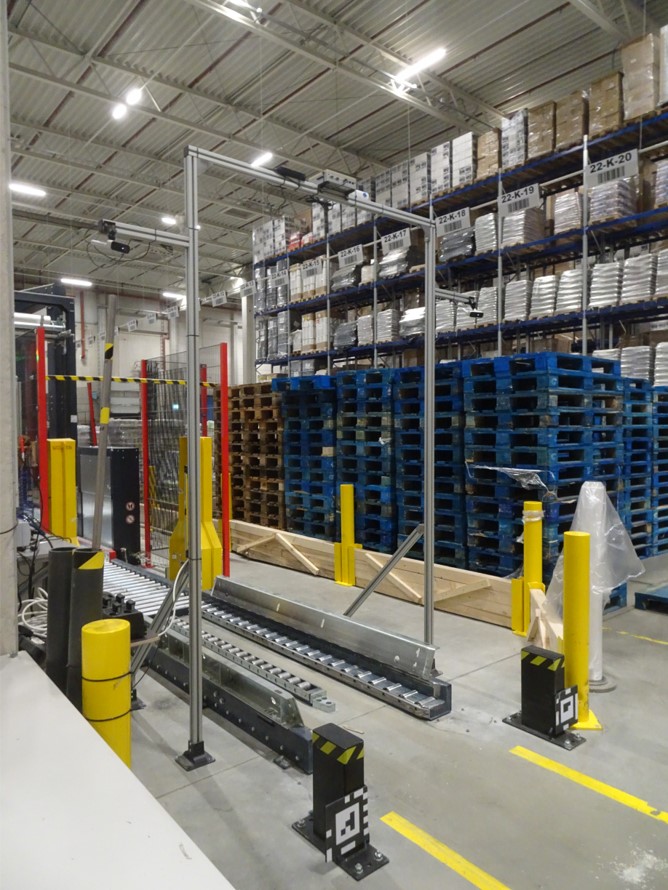

Contour Check Gates.
Volume and dimension determination on a robust, standard component design.
- Contour inspection
- Volume and dimension detection
- Robust, based on standard components
- Includes photo documentation
The contour inspection gate offers volume and dimension determination capabilities, with a robust design based on standard components. It is individually customizable and directly integrated into the Real-Time Digital Twin. It can also be used to create photos documenting the condition of a pallet and to interact with W2MO Case Pack to determine an optimal loading scheme for the truck or container based on the recognized dimensions.

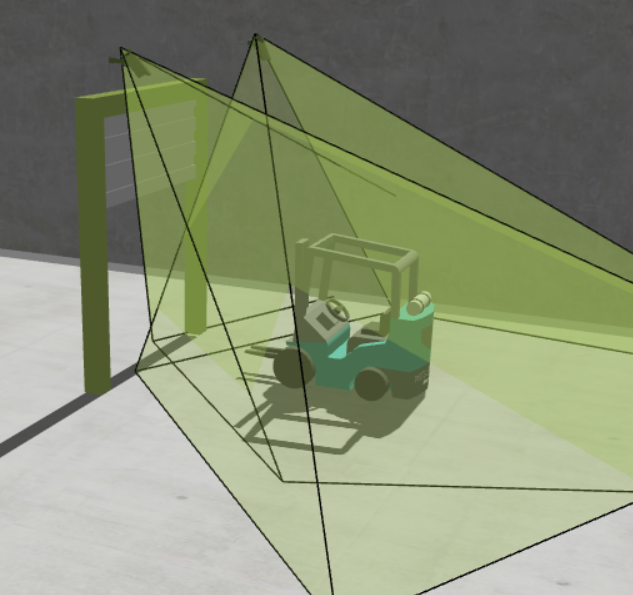

Virtual Gates.
Track pallet movements at any point of the warehouse — no physical gate required.
- Track pallet movement at any point of the warehouse
- Automatic booking of the movement when a transport passes a virtual gate
- No physical gate necessary
Virtual gates can be utilized at any location in a warehouse where AI-RTL&RS is installed. As pallets are tracked continuously throughout each movement, the movement can be monitored at any point. Simply insert a virtual gate entity into your Digital Twin to receive notifications about all passing transports. By connecting to your WMS or SAP system via a database connector, RESTful API or SAP connector, the results can be imported directly into your systems.
Read also about.
The identification gate is the foundation for scan-less goods tracking.
